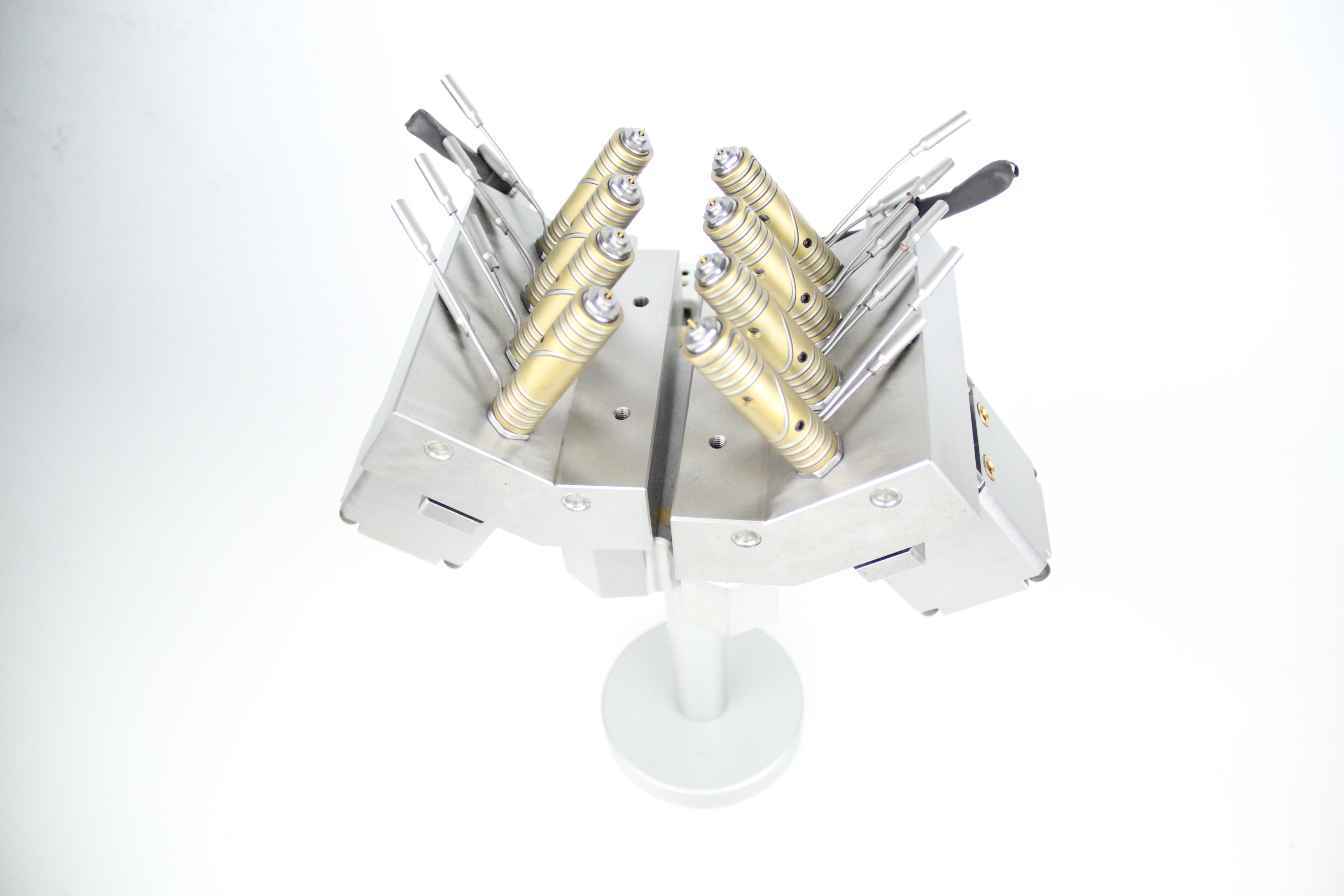

It is a hot runner air hydraulic valve system with manifold and the fixed parts like a main nozzle, four nozzles and a cylinder; the main nozzle connect with manifold, the manifold connect with nozzle, the four nozzles install in a straight line on the manifold. The oil cylinder install on the manifold, the pull rod is installed on the piston rod, through a pull rod pull four valve pins in the nozzle moving back and forth to do a cylinder control four valve pins for plastic filling.
Thumbnail (228 x 152 px):
Company:
Shanghai ANRY Mold Component Co., Ltd.
Innovation Awards:
2015 Ringier Technology Innovation Awards – Plastics Industry
Product Category:
Molds & Components
Is Award Product?:
